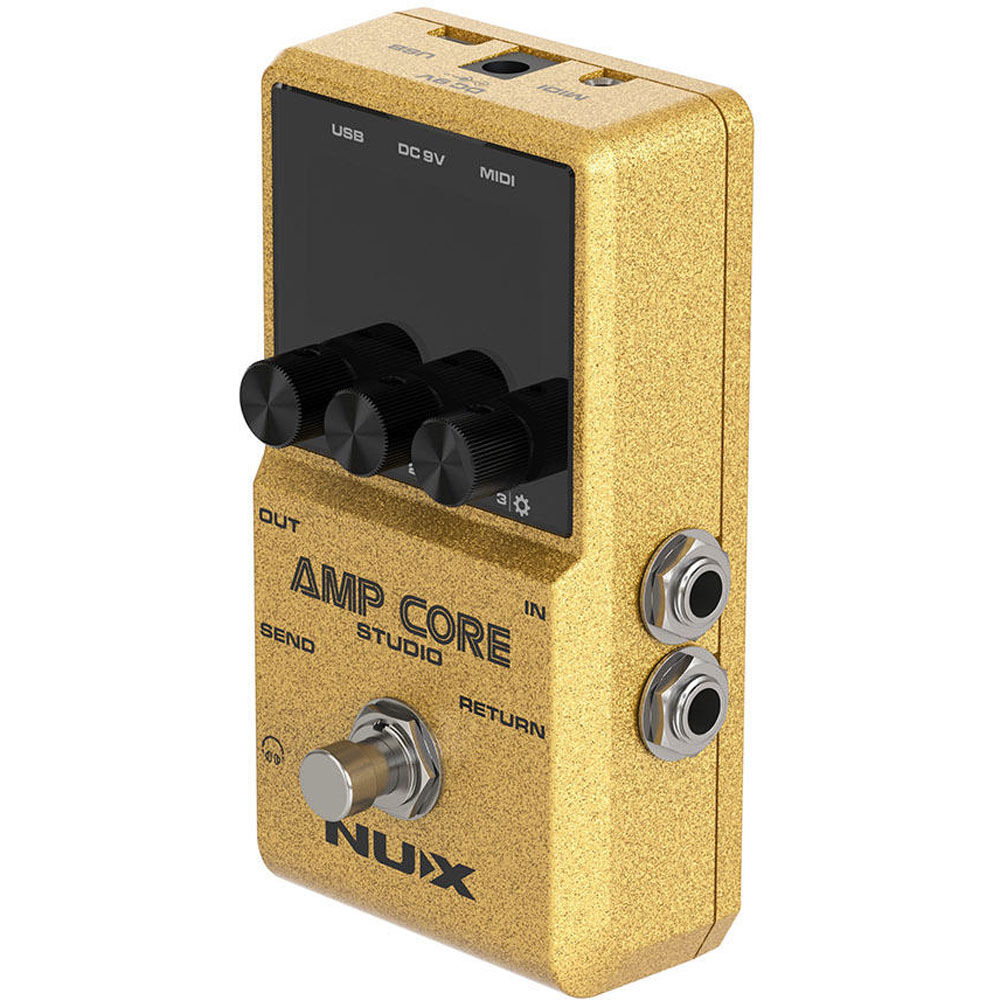

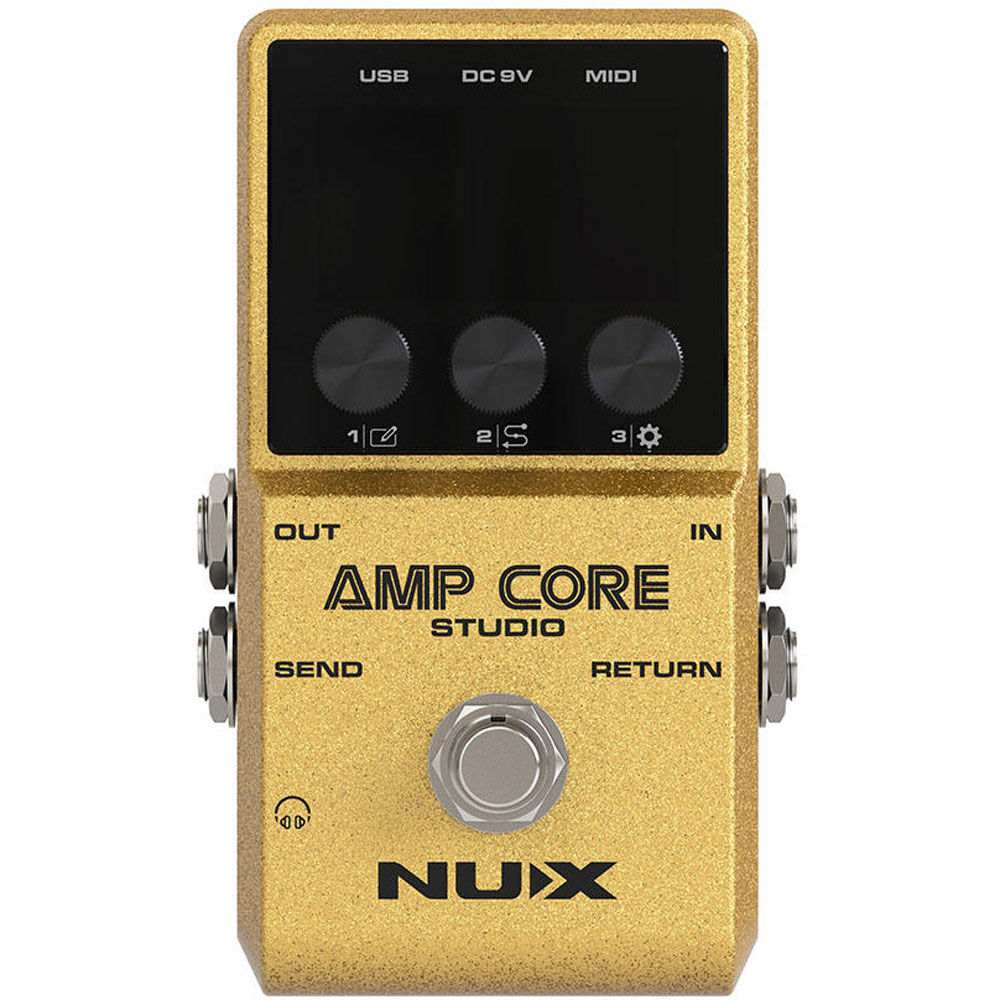

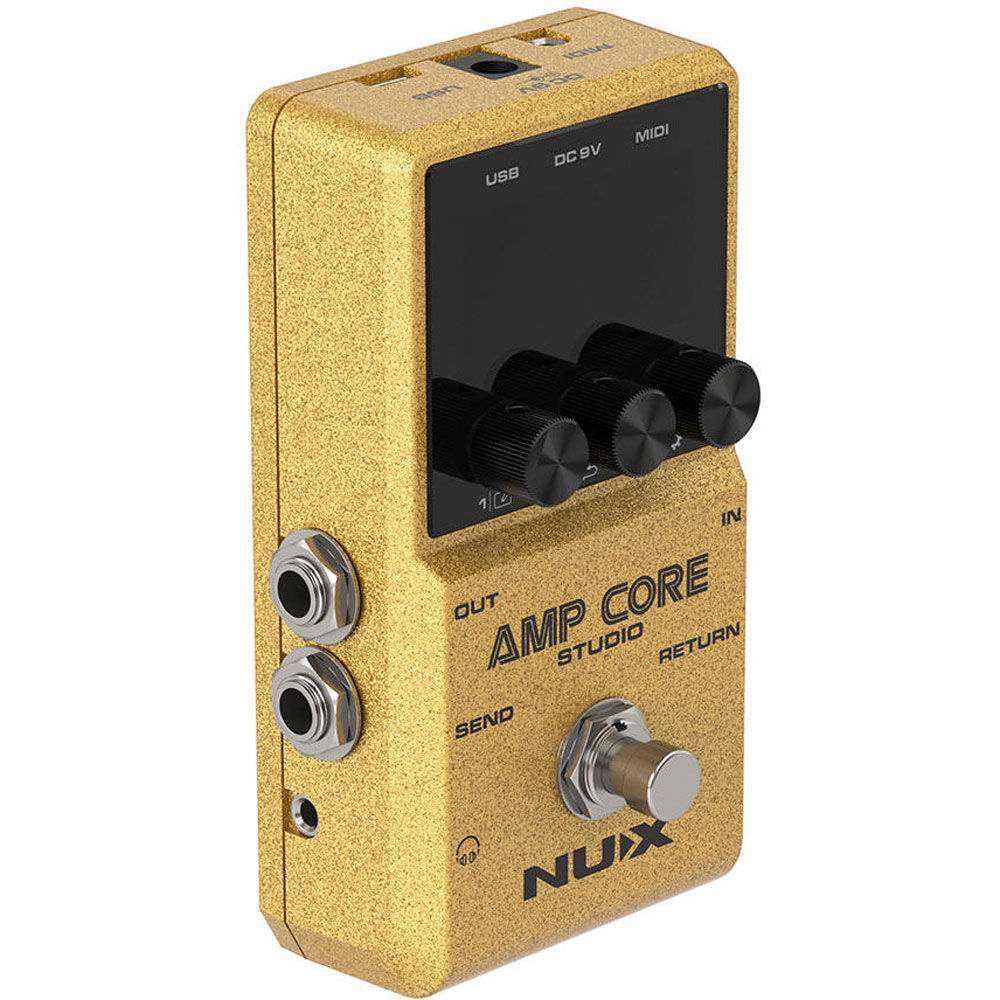

NU-X Core Series Amp Core Studio Amplifier Modeling Pedal

Multiple amps in a compact box, ready for any rig.

NUX AMP CORE STUDIO inherits the NUX TSAC-HD (White-box Amp Modeling) algorithm with 26 legendary amp models, delivering the authentic sound and feel of world-class tube amplifiers in a highly portable pedal.

Features:

• 26 legendary amp models packed into a compact, pedal-sized form factor.
• TS/AC-HD (White Box) amp modeling algorithm delivers authentic amp feel with ultra-responsive playability.
• Cabinet IR resolution with support for third-party IR loaders (33 built-in IRs and 12 empty slots for custom IRs).
• 3 Scene Modes allow seamless switching between different amp tones in real-time.
• Built-in Noise Gate (NG), EQ, Patch Level (P.L.) adjustment, and Send/Return (S/R) function for versatile sound shaping.
• Send/Return loop to easily integrate your favorite effect pedals.
• Ultra-low latency of 1.2ms.
• Wide dynamic range of 110dB for superior sound quality.
• 48kHz/32-bit high-precision processor for crystal-clear audio performance.
• Comes with AMP CORE STUDIO software for advanced sound editing and customization.

Specifications:

• Sampling Frequency: 44.1KHz
• AD converter: 24bit
• Signal Processing: 32bit
• Frequency Response: 20Hz-20KHz
• Noise Level: -100dBu
• Dynamic Range: 108dB
• Power Consumption: 110mA-120mA
• Input: IN, RETURN
• Output: OUT, SEND, PHONES
• Display: TFT color LCD display

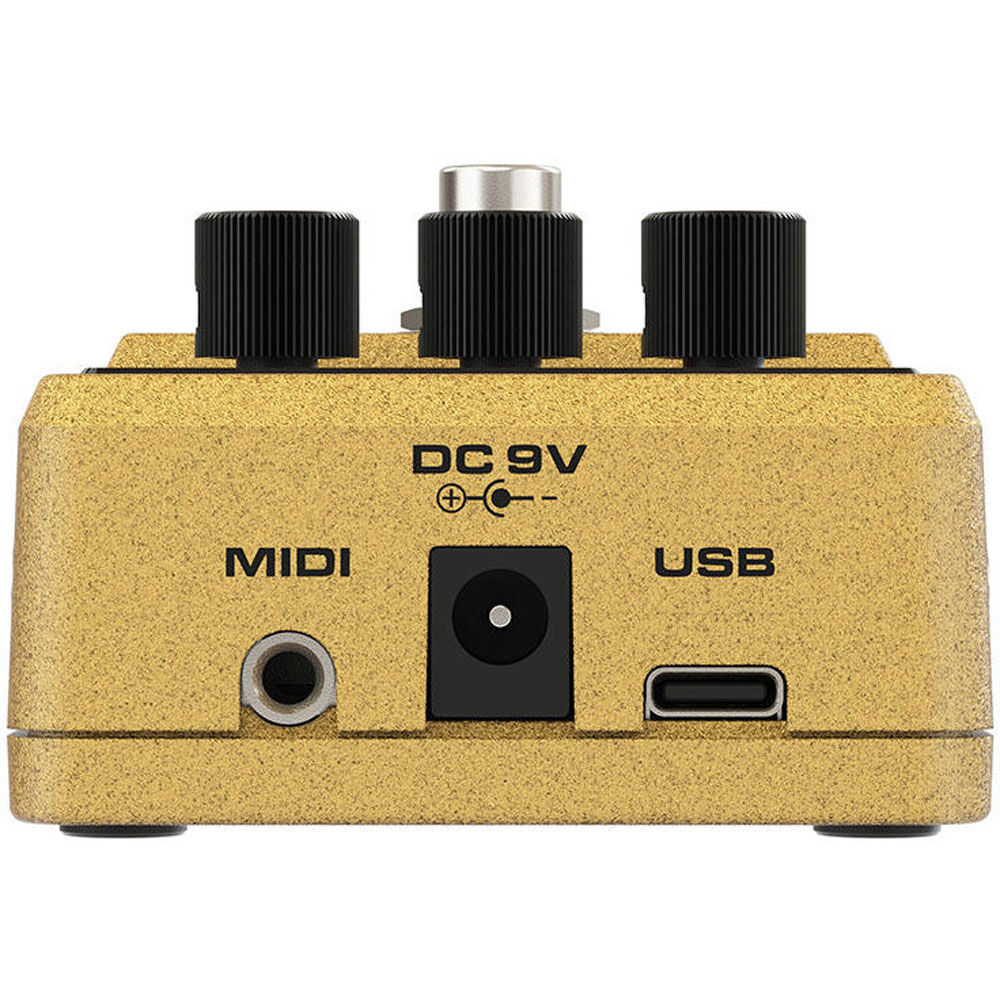

• Power: 9V negative tip power adapter
• Dimensions (L x W x H): 122 x 72 x 48mm
• Weight: 264g

Pedal-friendly Design
With its huge headroom and dynamic range, it's a pedal-friendly platform. Despite its ultra-compact size, AMP CORE STUDIO can store up to 20 hyper-realistic amp presets with built-in IR cabinets or 3rd party IRs, fitting seamlessly into any rig.

Real-time Switching Between Different Amps
3 Scene Modes allow seamless switching between different amp tones in real-time.

Amp Models and IR
AMP CORE STUDIO features 26 world-class guitar amplifier models, including F-style amps like Tweed, Twin, and Bassman; M-style amps like Plexi and JCM; modern high-gain amps like HBE, VH4, and Rectifier; as well as boutique amps such as the DC30, Maz 38, and AC30. The iconic TSAC-HD (WHITE-BOX algorithm) Amp Modeling offers you realistic amp feeling and fast playability response.

With premium amp emulator and third-party IR loader capacity makes it easy to bring your favorite amp sound everywhere.
Note: It includes 33 built-in IR cabinets and 12 empty slots for third-party IRs. (AMPCORESTUDIO editor will convert the WAV format automatically.)

*All of the brand and model names mentioned on this page are Trademarks of their respective owners, which are in no way associated or affiliated with NUX Effects and Cherub Technology CO. LTD.

Go Direct for Various Applications
ON STAGE:
Add AMP CORE STUDIO to any pedal chain and connect to a mixer or PA system for excellent tone, control, and flexibility during live performance. Monitor through the in-house monitoring system or in-ear monitors. For a dedicated personal on-stage monitor, connect your pedalboard to a powered FRFR speaker.

NOTE: The AMP CORE STUDIO is designed to deliver amp and cab tones, so it is not ideal to use it in front of a guitar amp. If you use the same pedalboard with both an amp and in direct situations, please turn the IR off of the AMP CORE STUDIO when using your board with a guitar amp. We recommend connecting the 1/4” OUT to the amp's power amp in/return. Engage the IR signal with the DI OUT for a powered FRFR speaker or PA system

IN STUDIO:
Connect AMP CORE STUDIO directly to a recording interface for excellent guitar tone, instantly, without the need to set up an amp or microphones.

AT HOME (SILENT PRACTICE):
Connect headphones or monitors directly to AMP CORE STUDIO’s 1/8" PHONES output to experience immersive classic amp tones in a natural sounding room without an amp.

Amp Core Edit Software
The software allows you to load third-party IRs and customize your favorite amp models to create your own sound. You can adjust the signal block order and routing, deeply tweak all block parameters, and even export or import presets.
